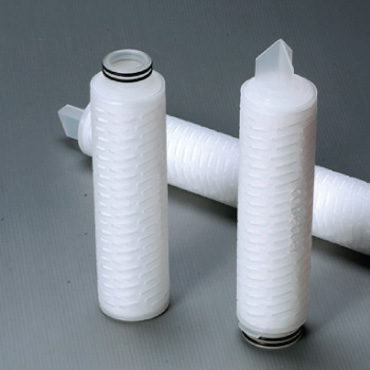

TeflonFlow Filter Cartridges
Hydrophobic PTFE Membrane · Final Filtration

Cobetter TeflonFlow Filter Cartridges are manufactured with an inherently hydrophobic PTFE membrane that maintains broad chemical compatibility for excellent corrosion resistance. Narrow pore size distribution ensures the highest retention and flow. It is also available as a hydrophilic PTFE membrane for no pre-wetting requirement when in operation. Recommended for marking & coding inks final filtration..


Features and Benefits

- Use of inherently hydrophobic PTFE membrane provides 100% efficiency.

- Available with removal ratings from 0.02 μm to 10 μm. Meets or exceeds ink quality requirements for ink jet ink printing.

- Each filer is individually integrity tested to ensure filter quality.

Broad chemical compatibility and excellent antioxidant ability for aggressive acids and base filtration specifically strong solvent filtration from CIJ inks



  • Specification
  • Performance
  • Ordering Information


Materials of Construction

Filter Medium

LPF       Hydropobic PTFE Membrane

LHPF    Hydrophilic PTFE Membrane

Support LayerPolypropylene
Core/Cage/End CapsPolypropylene
O-RingsPlease refer to ordering information
Effective Filtration Area0.74-0.98 m² / Ø68 -10 inch



Operating Conditions

Max. Temperature

80°C

Max. Differential Pressure

4.0 bar / 21°C

2.4 bar / 80°C

Removal Rating

0.02μm/ 0.05μm/ 0.1μm/ 0.2μm

0.45μm/ 1.0μm/ 3.0μm/ 5.0μm/ 10μm



Chemical Compatibility


[Chemical]

Benzene     R

Dimethylbenzene   R

AcetoneR

TrichloroethyleneR

Tetrachloromethane   R

TetrahydrofuranR

GasolineR

DimethyletherR

EtherR

ButanoneR




R: Recommend

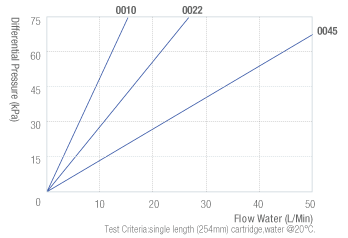

Flow Rate Characteristics
LPF inkjet cobetter.png





Ordering Information

    Removal Ratings   End CapNominal LengthSeal Material  -C

LPF

Hydrophobic PTFE


LHPF

Hydrophilic PTFE

0002=0.02μmDOE=Double Open End05= 5"S=Slilicone

0005=0.05μmTC=222 O-ring/Flat10= 10"E=EPDM

0010=0.1μmTF=222 O-ring/Fin 20= 20"V=Viton

0022=0.22μmSF=226 O-ring/Fin 30= 30"P=Encapsulated Viton

0045=0.45μmSC=226 O-ring/Flat  40= 40"


0100=1.0μm




0300=3.0μm




0500=5.0μm
