Polypropylene (PP) Membrane

Polypropylene membrane cbt.jpg

Cobetter Polypropylene (PP) membrane is constructed of pure polypropylene media, which belongs to a membrane filter material for deep filtration. Polypropylene membrane is natural hydrophobic, can withstand a variety of organic solvents, has excellent chemical stability and chemical compatibility. Polypropylene membrane is tough and durable, not easy to break, non-toxic, and with uniform strength. At the same time, Cobetter also offers hydrophilic polypropylene membranes. Polypropylene membrane can withstand PH values from 1 to 14 and have excellent compatibility with acids and bases. So, they are ideally suited for general clarification and pre-filtration of water, aqueous solutions and organic solvents. Additionally, polypropylene membrane is also commonly used for the retention and analysis of large particles. Since polypropylene membranes also have very low extractable content, this performance often provides a perfect solution for accurate analysis in chromatographic correlation applications.

Cobetter polypropylene membrane has a wide selection range of pore sizes. Polypropylene membrane is with high porosity, large amount of dirt-holding volume, and can withstand high temperature disinfection. For the different filtration requirements from different customers, Cobetter can also provide polypropylene nanofiber membranes with extremely high retention efficiency, no fiber shedding and long life time. Compared with PTFE membrane and PVDF membrane, polypropylene membrane can be safely treated by incineration without releasing harmful fluorine compounds and there is no disposable problem.

Cobetter polypropylene membrane also has wide range of medical and laboratory applications such as pre-filtration of infusion solvent, gas filtration in medical device and so on. Additionally, PP membrane is also used for pre-filtration for sample preparation, solution, solvent etc. and syringe filter in laboratory. These applications can fully display polypropylene membranes advantages of high flow rate, large amount of dirt-holding volume, and low extractable.


Polypropylene -CBT.jpg


Cobetter Polypropylene Membrane Performance Advantages
- Pre-filtration with highly dirt-holding capacity;
- Good chemical compatibility;
- Good hydrophobic/hydrophilic properties;
- Resistant to PH1-14; Resistant to temperature of 80°C;
- Non-specific absorption function and protein absorption is very low;
- Conforms to the filter standard “Fiber free release” defined in FDA CFR 210.3(b)(6);

Polypropylene Membrane Chemical Resistance Summary.pdf


Polypropylene Membrane Applications

- Gas filtration

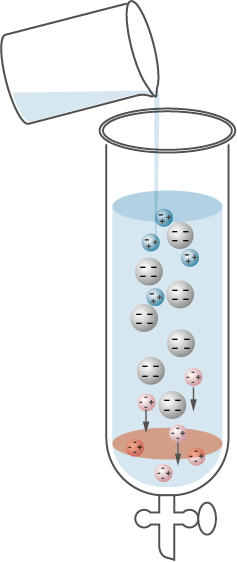

- Ion chromatography analysis

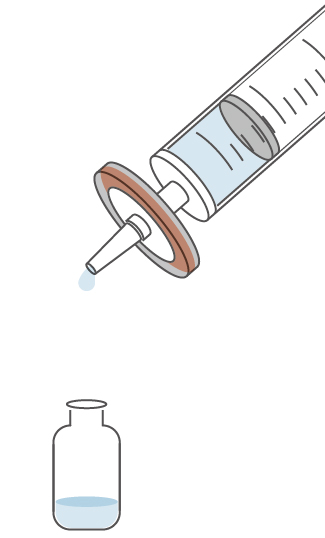

- Syringe filter

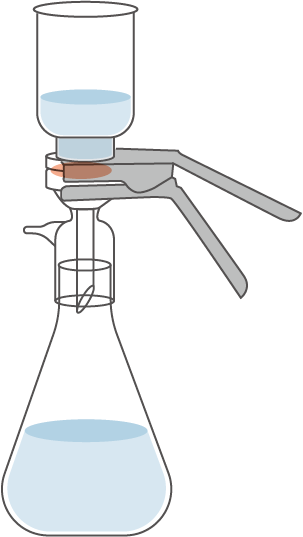

- Organic solvent filtration, HPLC solvent
  and sample filtration

- Gas filtration for environmental monitoring
- Remove large particulate
- Pre-filtration of APIS
- Pre-filtration of blood products
- Pre-filtration of medium
- Pre-filtration of dosing system

PP application 01.png             PP application 02.png    PP-application-05.jpg




Hydrophobic Polypropylene Filter Specification

Specification

Pore Size
(μm)

Thickness
(μm)

Air Flow Rate/s
@100ml*1in²*4.88in.water

Water Pressure Resistance/kPa

PP hydrophobic membrane 0.1μm

0.1

200

25

66

PP hydrophobic membrane 0.2μm

0.2

200

26

49

PP hydrophobic membrane 0.45μm

0.45

200

10

37

PP hydrophobic membrane 1μm

1

210

3.5

23

PP hydrophobic membrane 5μm

5

190

1

17

PP hydrophobic membrane 10μm

10

150

0.42

8

PP hydrophobic membrane 15μm

15

240

0.08

6.5

PP hydrophobic membrane 20μm

20

220

0.06

6.5

PP hydrophobic membrane 30μm

30

260

N/A

3

PP hydrophobic membrane 40μm

40

480

N/A

2




Hydrophilic Polypropylene Filter Specification

Specification

Pore Size
(μm)

Thickness
(μm)

Liquid Flow Rate/s
50ml *12.68cm²

Bubble Point/ kPa

PP hydrophilic membrane
0.2μm

0.2

190

15

66

PP hydrophilic membrane
0.45μm

0.45

190

4

45

PP hydrophilic membrane
1.0μm

1.0

170

14.6

18

PP hydrophilic membrane
5.0μm

5.0

320

4.1

20

PP hydrophilic membrane
10.0μm

10

170

2.8

7

PP hydrophilic membrane
10.0Tμm

10

320

2.2

8

PP hydrophilic membrane
15.0μm

15

350

2.1

6

PP hydrophilic membrane
20.0μm

20

320

2.0

5






For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message




Filters with Polypropylene Membrane

High Dirt Holding Capacity Filter Cartridges

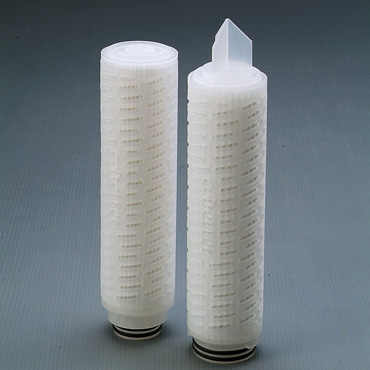

PFSA2 Filter Cartridge Series

Absoguard Filter Cartridges

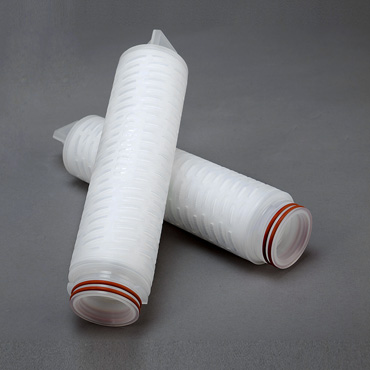

APP Filter Cartridge Series

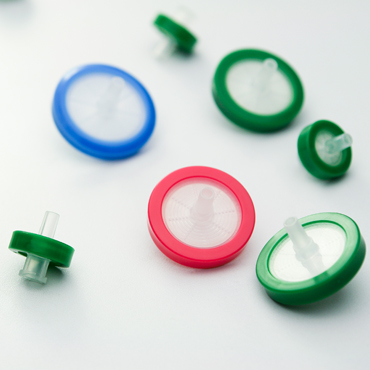

Unichro Syringe Filters
PFSA2-cbt.jpgAPP-CBT.jpgsyringe filter units -cbt.jpg
