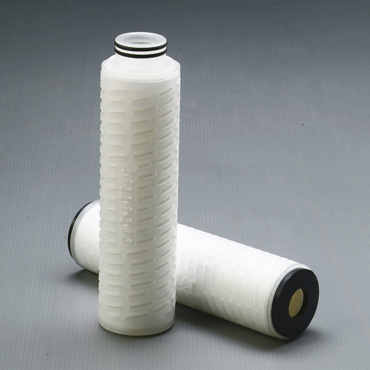

AdvanLife Filter Cartridges
Highly Asymmetric PES Membrane · Pre-Filtration & Final Filtration

Cobetter AdvanLife Filter Cartridges feature a unique singlelayer asymmetric hydrophilic polyethersulpone membrane. They are designed for filtration of aqueous liquids, including dye-based ink jet inks. It's membrane is characterized by high dirt holding capacity, high flow rate, high efficiency and longer life time. For regular dye-based ink, AdvanLife Filter Cartridges can be used as final filter for effective particle removal. However,for some special inks that need high-speed printing, such as, active dye inks and acid dye inks, AdvanLife Filter Cartridges are recommend as a pre-filter prior to using Duredunty Filter Cartridges; thus, increasing the service life of Duredunty Filter Cartridges.

The optimization of ink filtration process has always been a major problem. Agglomerates, by-product and large size pigment particles are main impurities which need to be solved. According to the impurity type in the ink, different filter materials and filter products are provided in order to get a better ink performance. Besides, the filter membrane materials independently developed by Cobetter make all this easier to achieve. In addition, there are capsule products for selection for an easier operation.



Features and Benefits

- Highly asymmetric polyethersulphone membrane allows for a high dirt holding capacity and longer service life. More than 3x the lifetime of similar products.

- Finest removal rating can be 0.1 microns. Meets or exceeds ink quality requirements for ink jet ink printing.

- Each filter is individually tested to ensure filter quality.

- Provides broad chemical compatibility (pH1-13); excellent compatibility with dye-based ink chemistries



  • Specification
  • Performance
  • Ordering Information


Materials of Construction

Filter Medium

Asymmetric PES Membrane

Support LayerPolypropylene
Core/Cage/End CapsPolypropylene
O-RingsPlease refer to ordering information
Effective Filtration Area0.66-1.02 m² / 10 inch



Operating Conditions

Max. Operating Temperature

80°C

Max. Differential Pressure

4.0 bar / 21°C

2.4 bar / 80°C

Removal Rating

0.1μm/ 0.22μm/ 0.45μm/ 0.65μm/ 1.2μm

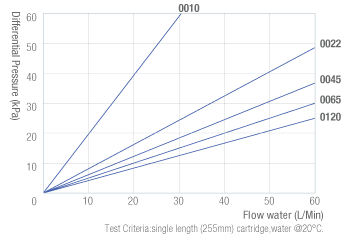

Flow Rate Characteristics
APS INKJET Cobetter.png





Ordering Information


Removal Ratings   End CapNominal LengthSeal Material  -C

APS

0010=0.1μmDOE=Double Open End05= 5"S=Slilicone


0045=0.45μmTC=222 O-ring/Flat10= 10"E=EPDM


0065=0.65μmTF=222 O-ring/Fin 20= 20"V=Viton


0120=1.2μmSF=226 O-ring/Fin 30= 30"P=Encapsulated Viton



SC=226 O-ring/Flat  40= 40"
























End Cap

DOE      SCSFTF
DOE CBT.pngSC CBT.pngSF cbt.pngTF cbt.png
