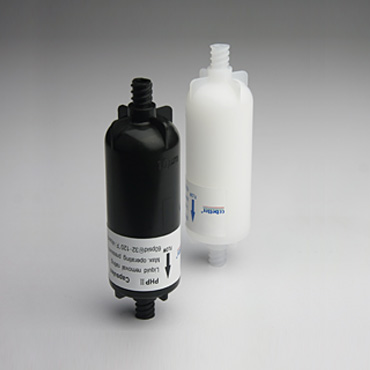

Cobetter PHP Series Capsule Filter have been widely used in wide format printers and eco solvent / water based ink jet printers. This capsule features a high filtration area for long service life and low initial pressure drop, ideal for situations where space is at a premium. In addition to the standard polypropylene capsule, an opaque UV resistant capsule in polypropylene is also available.
This capsule features a high filtration area design in small
volume. Max filtration area can reach 20000mm² .
The inlet & outlet is Luer Lock that is ideal for connecting tube size 3mm/4mm/6mm, which is all-in-one design can avoid leakage.
Thermal-bonded flber polypropylene forms a stable
structure ,and ensure no flber releasing.
No adhesive resins and ensure capsule filter excellent
pressure endurance.
Black color design to prevent UV light.

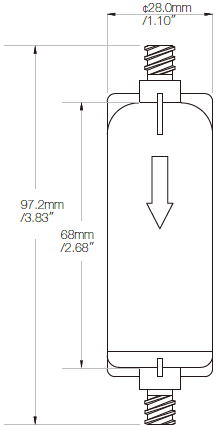

| Diameter | Ø 28 mm |
| Length | 97.2 mm |
| Inlet/Outlet | Luer Lock |
| Filtration Area | 140 cm² |
| Filter Media | Pleated Polypropylene |
| Cage / Shell / End Cap | Polypropylene |
| Core | Polypropylene |
| Max. Allowable Pressure | 101PSI / 7bar |
| Max. Allowable Temperature | 50°C / 120°F |
High precision, multiple nano-fiber construction, providing over 99.8% removal efficiency, recommend for regular dye-cased inks and most pigment-based inks.
Series | Shell | Filter Media / Removal Rating | Fittings | |||
PHP | - =Standard polypropylene | INKPP 0200 = 2.0μm 0500 = 5.0μm 1000 = 10.0μm 2000 = 20.0μm 5000 = 50.0μm | C = Female Luer Lock with 4.8mm Hose barb adaptor D= Female Luer Lock with 3.8mm Hose barb adaptor Q= Female Luer Lock with 8mm Hose barb adaptor E= Rotate Plug | |||
