Push-to-Connect Photoresist Coating Capsule Filters
PRNQ Filter Cartridge Series

PRNQ Capsule Filters Push-to-Connect Photoresist Coating Capsule Filters are designed with click and lock-connect fittings that connect easily and utilize quick-connect couplings to prevent leaks. HDPE Shell effectively controls any extractable. They are available in different membranes depending offiltration requirements and specifications.


Features and Benefits

Quick-Connect Design

Push-to-Connect capsule design allows for easy connection and space saving. A quick change-out utilizing a CPC connection saves down-time and reduces liquid loss thus ensuring a quick and efficient production.

CPC Safety Connection

Quick-connect couplings prevent leakage and ensure an airtight seal. Eliminate the need to cut tubes, which is usually associated with other connection types.

Clean Room Production

Each filter is manufactured in ISO standard clean room.

Effectively Control Any Extractable

HDPE Shell yields excellent chemical compatibility and extractable control.

High Flow Rates and Low Differential Pressure

  • Specification
  • Performance
  • Drawing
  • Ordering Information

Operating Conditions

Filter MediaPP/PTFE/UPE
End cap /Core/CagePP/HDPE
Max. Operating Temperature60°C
Max. Differential Pressure0.39MPa / 25°C

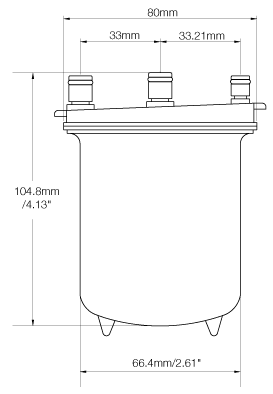

Drawing

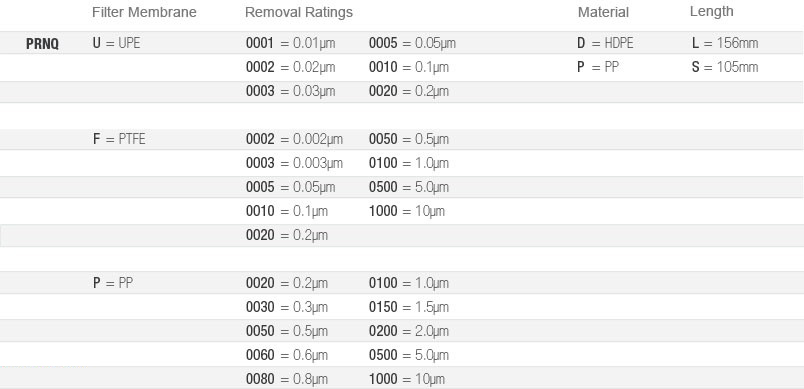

Ordering Information
