High Anti-Corrosive Performance Economical Design

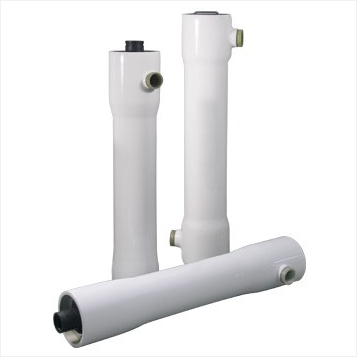

H-FRP Housing

Cobetter- H-FRP-150 filter is made of glass fiber reinforced plastic material, especially suitable for seawater, brine, brine and other applications. The performance characteristics of FRP make it have good corrosion resistance and guarantee long-term use. The HF150 series high-flow filter element is used inside. A 6-inch diameter HF150 is equivalent to 10-25 2.5 ”deep-layer filter elements, which effectively reduces the number of filter elements and the diameter of the filter barrel at the same flow rate. The Cobetter-H-FRP-150 series has 3 specifications. 1 core, 3 cores, and 12 cores, which is able to meet the needs of different flows. H-FRP-150-12 can reach a maximum flow of 1000m³/ h.      H-FRP-housing.png



Filter Cartridge Specifications


ModelH-FRP150-1H-FRP150-3 H-FRP150-12
Parameters

Filter element
diameter

6"6"6"
Filter length40"/60"/80"40"/60"/80"40"/60"/80"

Number of filter
elements

1312
Filter materialPP/GFPP/GFPP/GF
Flow direction

Inside to outside

Outside to inside

Inside to outside

Outside to inside

Inside to outside

Outside to inside

Design

Parameters

Standard design flow30 / 45 / 60 m³/h90 / 135 / 180 m³/h360 / 540/ 720 m³/h
Design flow40 / 60 / 80 m³/h120 / 180 / 240 m³/h480 / 720 / 960 m³/h
Design pressure0.6 / 1.0Mpa
Set tempreture-10~65°C
TextureShell materialFRP
Seal ring materialSilicone /EPDM /Viton



Ordering Information

Series

Number of
Filters

Filter
Length


Flow Direction

Sealing
Material

Design Pressure
H-FRP150

01=1 round

03=3 round

12=12 round


20=20 inch

40=40 inch

60=60 inch

80=80 inch


I = From inside
      to outside
O =From outside

      to inside

S=Silicone

E=EPDM

V=Viton

X=0.6MPa

Y=1.0MPa

Z=Customize










For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by info.industry@cobetterfilter.com or leave a message.
