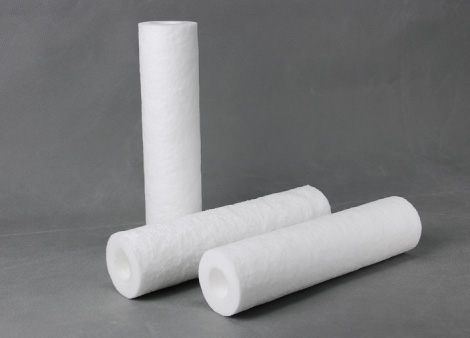

Hot Melt Blow Polypropylene Filter
EP Serise Filtration For Medium and High Viscosity of Glue

Disigned for medium and high viscosity of glue. Using the polyolefin polymers,combined of the features of meltblow and hot-melt,this filter can pressure resistance up to 8.0 bar.This filter can apply for the filtration of glue with functional particle .



Features and Benefits











  • Specification
  • Performance
  • Ordering Information

Material of Construction

Filter MediumPolypropylene
Support LayerPolypropylene
Core/Cage/End CapsPolypropylene
O-RingPlease refer to ordering information
Outer Diameter64 mm
Inner Diameter68 mm



Operating Conditions

Maximum Temperature80°C
Max.Differential Pressure

4.0 bar / 21°C
2.1 bar / 80°C
Steam Sterilization (Autoclave)null
Inline Steam Sterilizationnull
Hot Water Sterilizationnull

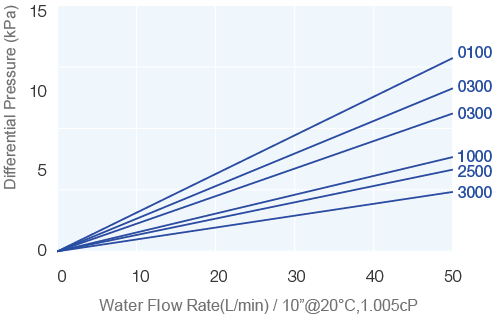

Flow Rate Characteristics




Retention Characteristic

Pore sizeEPP3 1.0EPP3 3.0EPP3 5.0EPP3 10.0EPP3 25.0EPP3 50.0
10μm≥99.00%--- - -
15μm≥99.50%≥99.00%-- - -
20μm≥99.90%≥99.50%≥99.00%- - -
30μm≥99.98%≥99.90%≥99.50%≥99.90% - -
40μm≥99.99%≥99.98%≥99.90%≥99.50% ≥99.00% -
50μm≥99.99%≥99.99%≥99.98%≥99.90% ≥99.50% -
70μm≥99.99%≥99.99%≥99.99%≥99.98% ≥99.90% ≥99.90%





Ordering Information

Series

Removal Rating End CapLenghtSeal Material Industry

EP3



0050

0100

0300

0500

1000

2500

5000

7500

100H

200H

= 0.5μm

= 1.0μm

= 3.0μm

= 5.0μm

= 10.0μm

= 25.0μm

= 50.0μm

= 75.0μm

= 100.0μm

= 200.0μm

DOE = Double Open End

TC = 222/Flat Cap

TF = 222/Fin Cap

SF = 226/Fin Cap

SC = 226/Flat Cap

05= 5"

10=10"

20=20"

30=30"

40=40"

S=Slilicone

E=EPDM

V=Viton

P=Encapsulated Viton

C= Chemical
