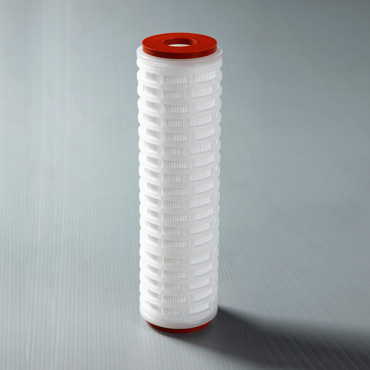

PolyFlow® Filter Cartridges
Polypropylene · Pre-filter for Liquids

PolyFlow® Filter Cartridges are composed entirely of pleated polypropylene microfiber which provides great filtration performance with a low cost. Characteristics include high flow rates, dirt holding capacity, and filtration efficiency making it the ideal solution for the pre-filtration of liquids.



Features and Benefits

  • High filtration efficiency
  • Broad chemical compatibility makes it suitable for acids, bases, and solvents
  • Pleated surface area provides superior flow rate and extended service life
  • Welded design eliminates the need for adhesives which can be a contamination source
  • Available in nominal ratings from 0.1μm to 25μm for precise particle removal


  • Specification
  • Performance
  • Ordering Information

Material of Construction

Filter MediumPolypropylene
Support LayerPolypropylene
Core/Cage/End CapsPolypropylene
O-RingPlease refer to ordering information
Effective Filter Area0.51-0.61 m² / Ø69-10 inch



Operating Conditions

Maximum Temperature

6.9 bar (100 psi) at 25 °C

4.0 bar (58 psi) at 60 °C

2.4 bar (35 psi) at 80 °C

Max.Differential Pressure


Forward   6.9 bar (100 psi) at 25 °C

                4.0 bar (58 psi) at 60 °C

                2.4 bar (35 psi) at 80 °C Reverse   3.0 bar (44 psi) at 25 °C

                1.0 bar (15 psi) at 80 °C

Steam Sterilization (Autoclave)null
Inline Steam Sterilizationnull
Hot Water Sterilizationnull

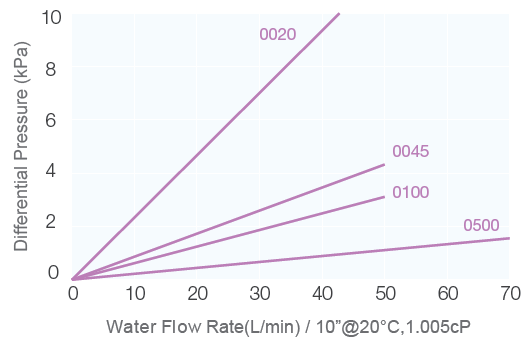

Flow Rate Characteristics


Ordering Information

Series

Removal Rating End CapLenghtSeal Material Industry

HPP



0020

0045

0100

0300

0500

1000


= 0.2μm

= 0.45μm

= 1.0μm

= 3.0μm

= 5.0μm

= 10.0μm


DOE = Double Open End

HTC = 222/Flat Cap (PBT Insert)

HTF = 222/Fin Cap (PBT Insert)

HSF = 226/Fin Cap (PBT Insert)

HSC = 226/Flat Cap (PBT Insert)


05= 5"

10=10"

20=20"

30=30"

40=40"

S=Slilicone

E=EPDM

V=Viton

P=Encapsulated

     Viton

C= Chemical
