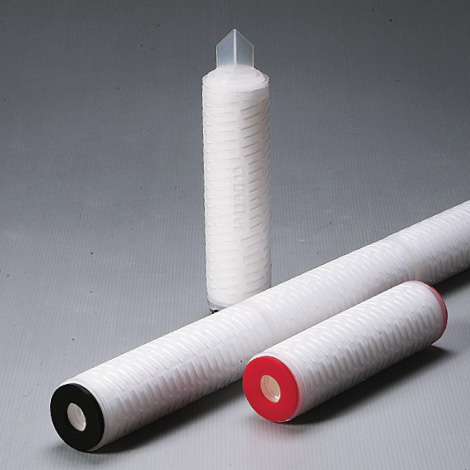

Cobetter Absoguard Filter Cartridge is a pleated depths filter. It combines melt-blown polypropylene and nano fiber media, provides absolute efficiency with excellent particles retention. Cobetter Absoguard Filter is an excellent choice for a wide range of digital printing ink jet inks filtration, especially for pre-filtration of dye-based inks.
· Two-Layer pleated construction ---provides superior flow rate and extended service life.
· Nano fiber media---provides excellent removal of contaminants such as gels and agglomerates.
· All-polypropylene construction---excellent compatibility with most ink systems and can be applied over a wide range of inks.
· Absolute-Rated for Dye-Based Ink Jet Inks Pre-Filtration
Material of Construction
| Filter Medium | Multiple Layers Melt-Blown Polypropylene |
| Support Layer | Polypropylene |
| Core/Cage/End Caps | Polypropylene |
| O-Ring | Please refer to ordering information |
| Effective Filter Area | ≥0.6m ² x 2 /10 inch |
Operating Conditions
| Max. Operating Temperature | 80°C |
| Max. Differential Pressure | 4.0 bar / 21°C 2.1 bar / 80°C |

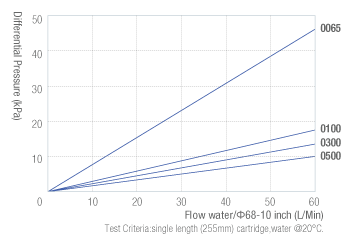

Flow Rate Characteristics
Retention Characteristic
| Pore size | APP 0.5 | APP 1.0 | APP 3.0 | APP 5.0 | |||
| ≥1μm | 99.99% | 99.78% | 90.35% | - | |||
| ≥2μm | 100% | 99.99% | 95.45% | 91.78% | |||
| ≥5μm | 100% | 100% | 99.93% | 98.19% | |||
| ≥10μm | 100% | 100% | 100% | 99.99% | |||
| ≥50μm | 100% | 100% | 100% | 100% |
Series | Removal Rating | End Cap | Lenght | Seal Material | Industry | ||
APP | 0020 0030 0050 0065 0080 0100 0300 0400 0500 0600 0700 1000 2000 | = 0.2μm = 0.3μm = 0.5μm = 0.65μm = 0.8μm = 1.0μm = 3.0μm = 4.0μm = 5.0μm = 6.0μm = 7.0μm = 10.0μm = 20.0μm | DOE = Double Open End TC = 222/Flat Cap TF = 222/Fin Cap SF = 226/Fin Cap SC = 226/Flat Cap | 05= 5" 10=10" 20=20" 30=30" 40=40" | S=Slilicone E=EPDM V=Viton P=Encapsulated Viton | C= Chemical | |
