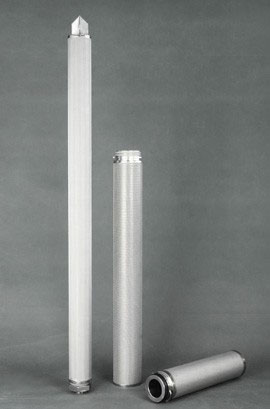

CSSC Cylindrical Stainless Steel Wire Cloth Sintered
Filter Cartridge

Cobetter Cylindrical Stainless Steel Wire Cloth Sintered Filters (CSSC) with multiple layers of 304 or 316 sintered stainless steel wire cloth that result in superior strength and corrosion and thermal resistance.

Even under high pressure, the pores remain homogenous while providing stability throughout the filter. This type of filter is ideally suited for solid/liquid solution separation where there are rigid particles.

A long lifespan with excellent re-using properties.

Features and Benefits

  • Pure stainless steel structure
  • Superior strength and corrosion and thermal resistance
  • 5 layers of 304 or 316 stainless steel wire cloth
  • Cartridge can be cleaned and re-used
  • Reinforcing layer
  • Excellent re-using properties
  • Homogenous pore sizes
  • No fiber releasing
  • Specification
  • Performance
  • Ordering Information

Materials of Construction(Five Layers)

Protective Layer304/316 stainless steel
Filter Layer304/316 stainless steel
Dispersion Layer304/316 stainless steel
First Reinforcing Layers304/316 stainless steel
Second Reinforcing Layers304/316 stainless steel



Configurations

Double Open-End (DOE)
Single Open-End (SOE)



Nominal Dimensions

Diameters60mm



Operating Conditions


Max. Differential Pressure3.0bar
Max. Operating Temperature480°C



Parameters

Code

Remova

lRatings(μm)

Removal

Ratings(μm)

Pore Efficiency

Absolute Removal

Rating(μm)

Average Air Permeability

(L/dm²min)

Flow Rate

(m³/h)

12.0
0.838%
8-9
2.350.25
25.0112-14
2.42
0.43
3
10316-18
3.000.50
4
201528-324.50
0.58
5
4025
58-63
7.10
0.67
6
10085125-13016.20
0.8

Bubble Point Testing

Tested according to GB/T8786; Differental Pressure of 2000Pa(in air)

Liquid Viscosity of 1 CP-S; diameter of 65mm; length of 1- inches; pressure of 1.0bar;


Parameters

LengthFiltration Area
5 in. (127 mm)0.025m²
10 in. (254 mm)0.05m²
20 in. (508 mm)0.10m²
30 in. (762 mm)0.15m²
40 in. (1016 mm)0.20m²

Length and Other Sizes Are Customizable

Tested Filter Diameter is 65mm

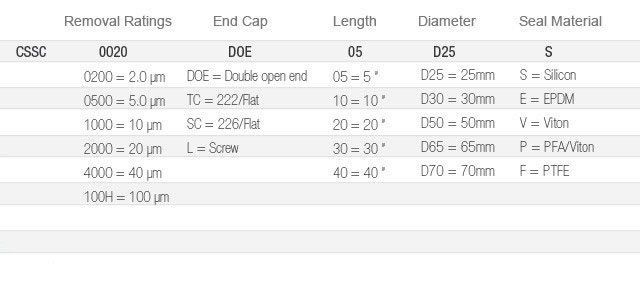

OrderingInformation
