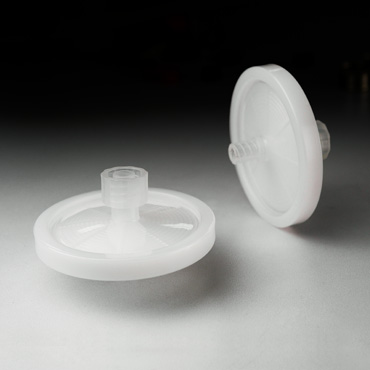

58 Disc high flow design is especially for the StarFire 1024 printhead users, ideal for digital inkjet ceramic printer, dyeing machine, advertising printer, UV flatbed printer and so on.

Feature

· High Flow Design with 17.3 cm² filtration area and 70ml/min flow rate (viscosity 10 cps, pressure 5mbar)
· Internal Venting Funtion and Unique Flow Channel Design adopted
· Fix Device Design
  2mm gap at the end of connector for assemble holder
· No Use of Extra Connector
  The outlet has internal thread design which can connect with the inlet of printhead directly
· Internal Thread of the Outlet Adopts Creative Movable Connector Design.
  User can just screw it directly during installation and the filter won't rotate with it, neither will the ink tube"

Benefit

· Meet the high ink volume needs and ideal for high speed printing
· Drain off bubbles, avoiding bubble point affect on the printing
· The filter can bevertical installed for effective utilization of filtration area
· Avoid ink tube connection, ensure less leakage condition
· Easy and quick intallation for Users
