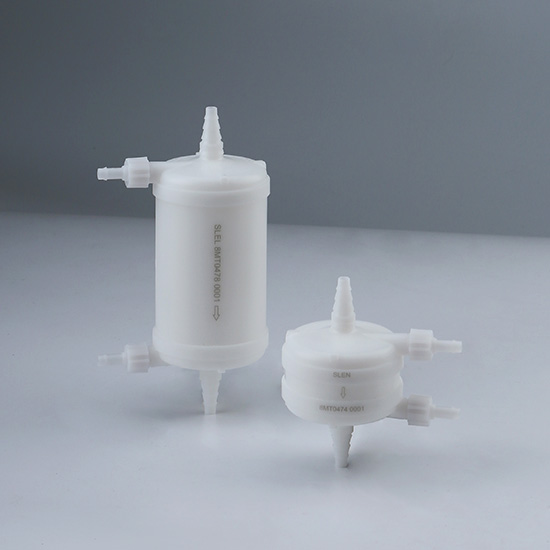

Purcise MLE Filter Hydrophilic Filter with Low Extractables

Features

  • Composed of a double-layer hydrophilic Polyestersulfone (PES) media

  • Efficient mycoplasma, bacteria and particulate retention

  • Extensive chemical compatibility (pH 1-14)

  • Low extractables




Applications

  • Sterilize filtration of cell culture medium

  • Pre-column/ultra-filtration protection

  • Filtration of intermediate products/stock solutions

  • Filtration of blood products/serums

  • Sterile filtration of terminal products






  • Specification
  • Performance
  • Ordering Information

Operating Conditions


Max. Temperature80°C

Max. Differential Pressure

0.55 MPa / 25°C
0.1 MPa / 80°C




Materials of Construction


Filter TypeBricap C/D/L/TCartridge

Membrane

Hydrophilic Polyethersulfone (PES)

Hydrophilic Polyethersulfone (PES)

Core/Cage/End CapPolypropylene (PP)Polypropylene (PP)

Capsule Shell

Polypropylene (PP)

-

O-ring-

Silicone/EPDM/

Viton/PTFE

Capsule Vent O-ring

Silicone

-

Removal Ratings0.2+0.1 μm / 0.45+ 0.1 μm




Biological Safety


Bio-compatibility

Meet the requirement of USP<87>In Vitro Cytotoxicity Test;

Meet the criteria of the USP<88>Biological Reactivity Test

for Class VI-121°C plastics

Endotoxins< 0.25 EU/ml





Effective Filtration Area


BriScale A50Bricap CBricap LBricap TCartridge

A50: 20 cm²

C01: 180 cm²

L02: 0.12 m²

T10: 0.55 m²

5" : 0.28m²


C02: 420 cm²L03: 0.16 m²T20: 1.1 m²10": 0.55m²

C03: 660 cm²

L05: 0.28 m²

T30: 1.65 m²

20": 1.1m²


D01: 350 cm²L10: 0.55 m²

30": 1.65m²



L20: 1.1 m²


40": 2.2m²



L30: 1.65 m²




Sterilization Capability


Sterilization Method/Filter FormatBriScale Disc, Bricale C/ L / TBricap DCartridge

Gamma-irradiation

25-45 Kgy

/

/

Autoclave (126°C) applies only to

Gamma-compatible package

5 cycle, 30min//

Autoclave (130°C) applies only to

Atoclave package

25 cycle, 30min

25 cycle, 30min

25 cycle, 30min

SIP (135°C) applies only to cartridge//

25 cycle, 30min
