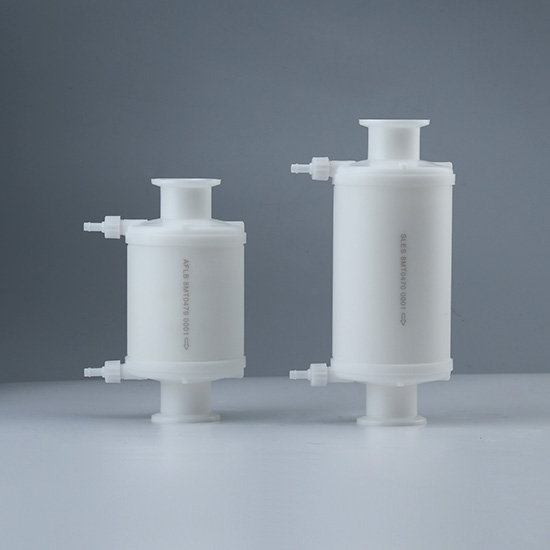

Excesal CHE High Retention Efficiency
Clarification Filter Series

Features

  • Composed of double-layer Polypropylene media

  • Inner layer uses nanofibers to provide high retention efficiency





Applications

  • Pre-filtration of cell culture medium

  • Clarification of fermentation broth / cell cultures

  • Pre-filtration of blood products / serums

  • Pre-filtration of colloids / viscous liquids





  • Specification
  • Performance
  • Ordering Information

Operating Conditions


Max. Temperature80°C

Max. Differential Pressure

0.55 MPa / 25°C
0.1 MPa / 80°C




Materials of Construction


Filter TypeBricap C/L/TCartridge

Membrane

Polypropylene (PP)

Polypropylene (PP)

Core/Cage/End CapPolypropylene (PP)Polypropylene (PP)

Capsule Shell

Polypropylene (PP)

-

O-ring-

Silicone / EPDM/

Viton / PTFE

Capsule Vent O-ring

Silicone

-

Removal Ratings0.3 /0.65 /1.0 /3.0 /5.0μm




Biological Safety


Bio-compatibility

Meet the requirement of USP<87>In Vitro Cytotoxicity Test;

Meet the criteria of the USP<88>Biological Reactivity Test

for Class VI-121°C plastics

Endotoxins< 0.25 EU/ml





Effective Filtration Area


BriScale A25/A50Bricap CBricap LBricap TCartridge

A50: 20 cm²

C01: 140 cm²

L03: 0.1 m²

T10: 0.36 m²

5" : 0.18 m²


C02: 320 cm²L05: 0.18 m²T20: 0.72 m²10" : 0.36 m²


C03: 500 cm²

L10: 0.36 m²

T30: 1.08 m²

20" : 0.72 m²



L20: 0.72 m²

30" : 1.08 m²



L30: 1.08 m²


40" : 1.44 m²




Sterilization Capability


  ·  BriScale  Disc, Bricap  C, Bricap  L, Bricap  T Series

 ·  Filter Cartridges : Autoclave
