All Polyfuorene Construction Excellent Corrosion & Temperature Resistance

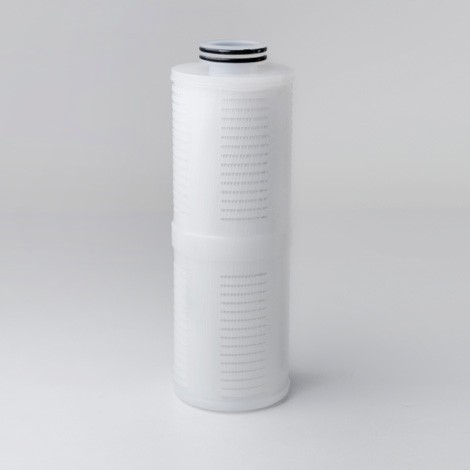

PFA Filter Cartridge Series

PFA Filter Cartridges are made of high-purity PFA material which ensures low extractable. Its excellent corrosion resistance makes it suitable to filter all kinds of chemicals stable and efficiently.

Excellent Chemical Compatibility

A PTFE membrane combined with PFA support provide excellent corrosion and temperature resistance

High Flow Rates; Low Pressure Loss; Long Service Life

Each Element is Individually Integrity Tested

Available as a Pre-wetted Package

The cartridge is available in a pre-wetted package to eliminate the wetting procedure and save time.

  • Specification
  • Performance
  • Ordering Information

Operating Conditions

Filter MediaPTFE
End cap /Core/CagePFA
Max. Operating Temperature170°C
Max. Differential Pressure0.4 MPa / 21°C
Filter Area5.0μm 1.08 m² / 68-10 inch
Metal Ion Leach< 1 ppb
TOC Leach< 10 ppb
Particle Flush0.2μm particles<10 grains/ml

Flow Rate Characteristics


Ordering Information

Diameter
Removal RatingsEnd CapNominal LengthSeal Material
Φ68mmPFA0002 = 0.02μmTC = 222 / Flat05 = 5 inchP = FEP
Φ83mm
0003 = 0.03μm
10 = inch


0005 = 0.05μm




0010 = 0.1μm




0020 = 0.2μm




0050 = 0.5μm




0100 = 1.0μm




0500 = 5.0μm




1000 = 10μm
