ChemegaTM High-Efficiency Filtration for Chemicals

Chemega™ is constructed of a PTFE membrane that provides excellent chemical compatibility and is inherently hydrophobic. It is specically designed to limition iron extraction so that it meets the requirements of chemicals and organic solvents in the electronics industry.


Chemega™ Filter Cartridge Series constructed of a hydrophilic PTFE membrane that isready-to-use to filter polar solvents without the need for pre-wetting.




Application

  • PTFE Membrane: IPA or Solvent in FPD, Data Storage Industry.

  • Hydrophilic PTFE Membrane: DIW, WEC, Acid/Alkaline Solution of Developer






  • Specification
  • Performance
  • Ordering Information


Product Specification

Membrane    Hydrophobic PTFE / Hydrophilic PTFE
Supports/Cage/Core/End Caps PP
O-ringTEV or FFKM
Max. Operating Temperature90°C
Max. Differential Pressure

0.4 MPa / 21°C

0.24 MPa / 80°C

Filter Areasø 83mm|                              ø68mm

1.3 m²/10"0.91 m²/10"







Ordering Information


Cartridge

CHR1234OTC
567


Block 1Block 2Block 3Block 4Block 5Block 6Block 7

Membrane

Diameter

Removal Ratings

Nominal Length

O-ring MaterialCleanlinessPackage

T=Hydrophobic

H=Hydrophilic

      50nm

      0.1/0.2/0.5/1.0/3.0/

      5.0/10μm





Z1=ø83mm

X1=ø68mm



NM07=7nm

NM10=10nm

NM15=15nm

NM20=20nm

NM30=30nm

NM50=50nm

0010=0.1μm

0020=0.2μm

0045=0.45μm

0050=0.5μm

0100=1.0μm

0300=3.0μm

0500=5.0μm

1000=10μm


04=4"

10=10"

20=20"

P=TEV

E=EPDM

M=＜25μg/device

H=＜40μg/device

E= Electronic grade

D=Dry

W=Prewet, UPW

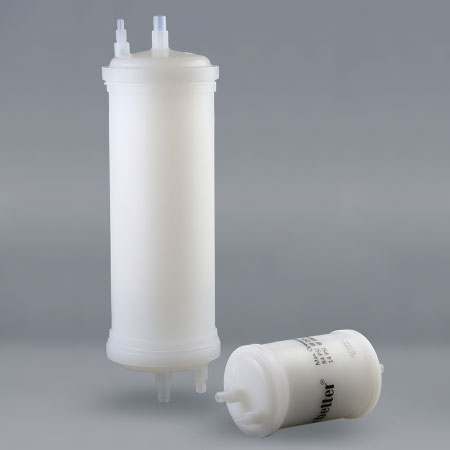

Compact Capsule

CHR12345


Block 1Block 2Block 3

Block 4Block 4

Membrane

Removal Ratings

Fitting Type

Inlet/Outlet

Vent/Drain

O-ring MaterialPackage

T=Hydrophobic

H=Hydrophilic

      50nm

      0.1/0.2/0.5/1.0/3.0/

      5.0/10μm



NM07=7nm

NM10=10nm

NM15=15nm

NM20=20nm

NM30=30nm

NM50=50nm

0010=0.1μm

0020=0.2μm

0045=0.45μm

0050=0.5μm

0100=1.0μm

0300=3.0μm

0500=5.0μm

1000=10μm

BFL64-4=CFL

BFL64-10=CFL

BFL64-20=CFL

NPT42=NPT

NPT742=NPT

NPT942=NPT

SW43=SW

SW743=SW

SW943=SW

SW44=SW

SW744=SW

SW944=SW

SW84=SW

SW784=SW

SW984=SW

SW764=SW


3/8"

3/8"

3/8"

1/4"

1/4"

1/4"

1/4"

1/4"

1/4"

1/4"

1/4"

1/4"

1/2"

1/2"

1/2"

3/8"



1/4"

1/4"

1/4"

1/8"

1/8"

1/8"

4mm

4mm

4mm

1/4"

1/4"

1/4"

1/4"

1/4"

1/4"

1/4"


M=＜25 μg/device

H=＜40μg/device

E= Electronic grade

D=Dry

W=Prewet, UPW
