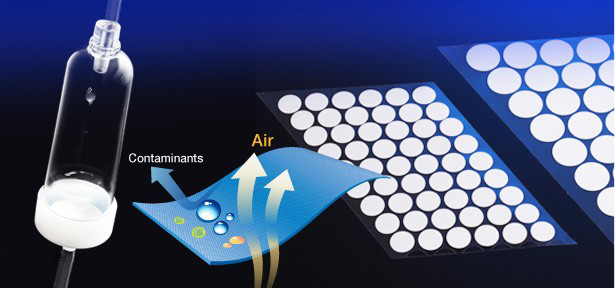

Air Stop Filter Membrane


Air Stop Filter 5µm-15µm

A safer and more efficient solution for infusion sets


-Particle Barrier

Pore size 5µm-15µm, higher protection against particle related risks (efficiency >97%@5um Particle)


- Air Barrier

Protects against air bubbles


- Auto Stop Function

Automatically blocks air passage when the infusion container runs empty, and maintains fluids in the infusion line which helps reduce workload. Air-stop function guarantees a water column of at least 270cm


- High Flow Rate

Minimum 320ml/min*cm2@10kPa


- Less Priming Time

Instant wetting ability eliminates the time to activate the filter.


- Lipid Infusions Compatible

High porosity structure


- Excellent Welding Compatibility

Ultrasonic, Thermal, Co-molding


  • Hydrophilic PVDF Membrane Cobetter modified hydrophilic PVDF (Polyvinylidene Difluoride) membrane filter has excellent water wettability, providing high flow rate. PVDF membranes are naturally hydrophobic but are modified to a hydrophilic nature. Useful for a wide range of applications, both aqueous and non-aggressive solvent-based. These membranes are typically low protein binding and are frequently used for sterilizing filtration.
