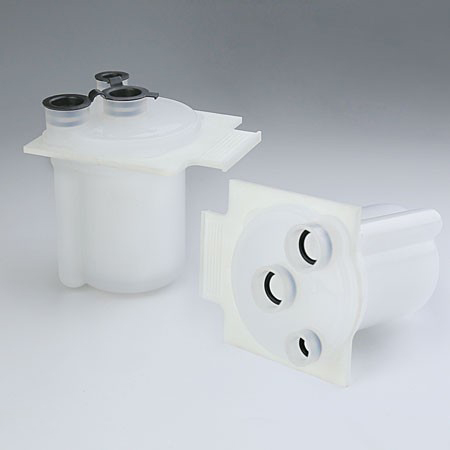

One-piece construction is easy to install, clean and replace this filter capsule
Unique vent structure effectively removes bubbles in the photoresist
Available in a wide range of membranes to meet all customer requirements
Strict Japanese quality assurance ensures product stability
| Filter Membrane | UPE / Nylon / Multi/ HAPES / PTFE | |
| Cage / Core / End Caps | HDPE | |
Max. Operating Temperature | 50°C | |
Ordering Information
Catridge
| PTG | 1 | 2 | 3 | 4 | 5 | 6 |
| Block 1 | Block 2 | Block 3 | Block 4 | Block 5 | Block 6 |
Membrane | Removal Ratings | Configuration | O-ring Material | Cleanliness | Package |
| U=UPE | NM01=1nm NM02=2nm NM03=3nm NM05=5nm NM10=10nm NM20=20nm NM30=30nm NM50=50nm 0010=0.1μm 0020=0.2μm | SIN=Side Inlet CIN=Center Inlet | K=FFKM KZ=Kalrez | UU= Super clean grade UH= High clean grade U= Semicon grade E= Electronic grade | D=Dry W=Prewet, UPW |
| N=Nylon | NM02=2nm NM05=5nm NM10=10nm NM20=20nm NM40=40nm 0010=0.1μm 0020=0.2μm | ||||
| M=Multi | NM02=2nm NM03=3nm NM05=5nm NM10=10nm NM20=20nm NM30=30nm NM50=50nm 0010=0.1μm 0020=0.2μm | ||||
| P=HAPES | NM02=2nm NM05=5nm NM10=10nm NM20=20nm NM30=30nm NM50=50nm 0010=0.1μm | ||||
F=PTFE | NM07=7nm NM10=10nm NM15=15nm NM20=20nm NM30=30nm NM50=50nm 0010=0.1μm 0020=0.2μm 0050=0.5μm | ||||
Please contact Cobetter for additional information.
