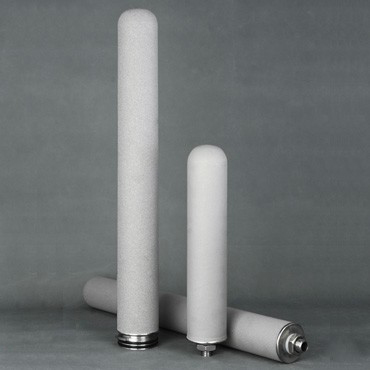

TIC Titanium Metal Powder
Filter Cartridge

Cobetter TIC Titanium Metal Powder Filter Cartridges composed of high-purity industrial-grade titanium powder (99.4%) with all elements sintered at high temperatures. Its features include anti-chemical corrosion, oxidation and high temperature resistance, and long service life. As it is a low viscosity liquid filter, this filter results in good solid-liquid separation efficiency. This filter is mainly used as a chemical filter to remove ozone-depleting substance and for the removal of carbon dioxide in food, pharmaceutical, and water treatment applications.


Features and Benefits

  • High-purity titanium construction
  • Anti-corrosive; high temperature and oxidation resistant
  • Uniform structure with narrow pore size distribution and high filtration efficiency
  • No free-falling particles
  • High porosity, low filtration resistance and high filtration efficiency
  • Good compatibility with human tissue and blood due to its non-toxic and non-magnetic nature
  • Specification
  • Performance
  • Ordering Information

Materials of Construction

Filter LayerHigh-purity Titanium
End CapHigh-purity Titanium
Screw Cap304 Stainless Steel
Reinforcing Layers304/316 Stainless Steel


Nominal Dimensions

Diameters65mm

Additional Diameter Specifications Available Upon Request

Configurations

Double Open-End (DOE)
Single Open-End (SOE)



Operating Conditions

Max. Differential Pressure3.0bar
Max. Operating Temperature280°C


Cleaning Methods

Physical Cleaning Methods: Reverse-Flow by Clean Water; Reverse-Blow by Clear Air and Ultrasonic Wave
Chemical Cleaning Methods: Use Cleaning Agent Such As Diluted Acid, Diluted Alkalis, Oxidizer, and Surfactant

Contamination MaterialsGeneral Cleaning Method Procedures
Decarburization in Pharmaceutical
and Chemical Industries
Reverse-blow and reverse-flow used more frequently; ultrasonic wave cleaning used when necessary
Non -Water Soluble Salts and Oxides
in the Pharmaceutical Industry
Soak in 5% Concentration of Nitric Acid Solution
Original Liquid FiltrationChoose the correct cleaning methods as per the chemical properties of the contamination material;
The Ultrasonic Wave Cleaning can be combined to use when necessary
Chemical Clean ing MethodsDetailed Procedures
Alkaline CleaningAlkaline Cleaning Soak filter in 3-5% Concentration of AR grade NaOH Solution for 30-60 minutes;solution temperature is 40°C. Flush the soaked filter inside, out with DI water or WFI water until the flushed solution turns neutral , and then test its conductivity. Dry with Pure Air 0.4Mpa
Acid CleaningSoak it in the 5% Concentration of Nitric Acid Solution for at least 8 hours; solution temperature is 40°C. Flush the soaked filter inside, out with DI water or WFI water until the ushed solution turns neutral, and then test its conductivity. Dry with Pure Air 0.4Mpa
Original Liquid FiltrationClean filter with surfactant caused by contamination with Organic Pollution ( high concentration of Citric Acid recommended for Food and Beverage Applications)

Parameters

Code

Liquid Pore

Size (μm)

Differential

Pressure (KPa)

Pore Efficiency

Absolute Removal

 Rate (µm)

Average Air Permeability

(L/dm²min)

Flow Rate

(m³/h)

10.453230-50%60.020.18
21.025100.10.27
33.06.1200.50.33
45.03.2301.11.32
51030502.74.2
6202.8705.65.6
730

6.5
85

10.5
980

14.9
10100

18
11120

20

Testing Method: Bubble Point Method

Testing Performed According to GB/T5453; Testing DP is 200Pa; Testing Medium is Air

Testing Liquid Viscosity is 1CP.S; Filter Tested with 60mm diameter and 300mm length; Testing Pressure is 1.5 bar

Length and Area

LengthFiltration Area
5 in. (125 mm)0.024m²
10 in. (300 mm)0.047m²
20 in. (500 mm)0.094m²
30 in. (750 mm)0.141m²
40 in. (1000 mm)0.188m²

Length and Other Sizes Are Customizable

Tested Filter Diameter is 65mm

Particle Efficiency

Particle Range0.45μm1μm3μm5μm10μm
≥2μm99.916%99.895%99.769%82.546%82.371%
≥5μm99.974%99.974%99.910%96.283%96.079%
≥10μm99.990%99.986%99.973%98.875%98.902%
≥12μm99.987%99.987%99.986%98.998%98.982%
≥25μm100.000%100.000%100.000%99.996%99.916%
≥35μm100.000%100.000%100.000%100.000%99.966%
≥50μm100.000%100.000%100.000%100.000%100.000%

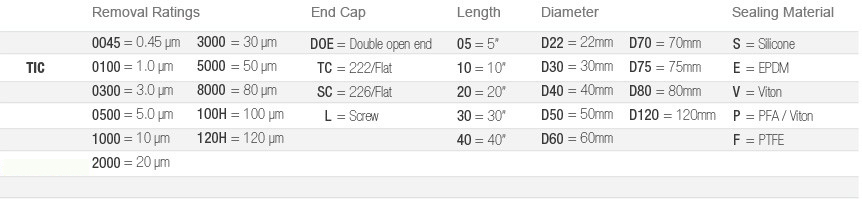

Ordering Information
