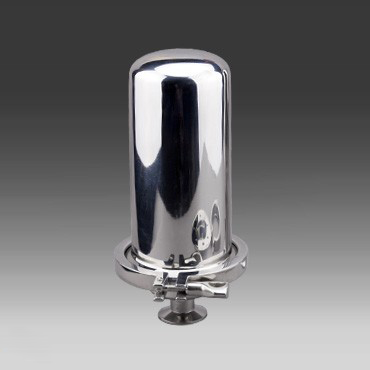

H-VCF Vent Filter Housing
Air Filter Housing Especially for Use on Top of a Storage Tank

H-VCF Vent Filter Housing used in food & beverage and pharmaceutical applications to sterilize the air before it flows into the tank, while maintaining pressure balance inside and outside the housing.


All sanitary and GMP standards are met. The housing is easy to clean. Electro-polish surface finish is available upon request.

  • Specification
  • Drawing
  • Biological Satety

Surface Finish

Polish Type

Mirror Polish;

Internal Electro-polished

Surface Option

Internal Ra: 0.3μm;

External Ra: 0.4μm

Connection

Body ConnectionTri-clamp, Strengthened clamp
Outlet1 inch (DN 25) clamp

Material of Construction

Housing Body304;316L
Clamp304
O-ring / GasketsSilicon, Viton, EPDM, PTFE

Operating Conditions

Max. Operating

Pressure

Ambient Temperature

Max. Operating Temperature

130 °C (266 °F)
Steam SterilizationIn-situ /Autoclave @ 121°C / 30 min

Drawings & Dimensions





1 round
5 inch
1 round
10 inch
1 round
20 inch
A232262622
C102102102

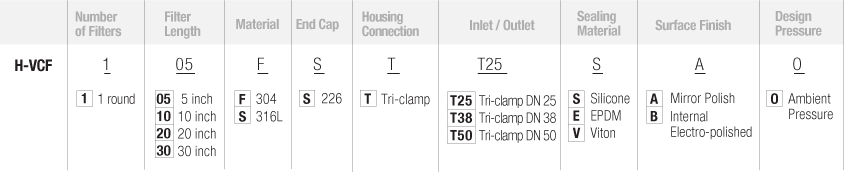

Ordering Information
