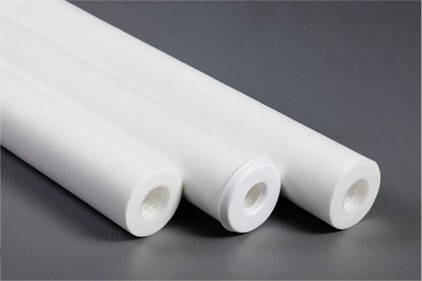

PolyRolled Filter Cartridges (RMF-PR)
Rolled Polypropylene Microfiber · Final Filtration

Cobetter PolyRolled Depth Filters are made of continuously rolled microfiber (for a total of 56 layers).The outer layers are constructed of graded pore size while the inner layers are stable pore size. This provides a large filter area and high efficiency. Highly recommended for pigment-based inks, ceramic inks, and disperse ink jet inks filtration.




Features and Benefits

  • Nanofiber Media is used to increase dirt holding capacity, filter life time, and ensure high filtration efficiency.
  • Made of 56 layers of continuously rolled microfiber that provides are high filter area for a filtration efficiency of 99.8%.
  • Good oil-absorption effect for filtration ink composition for items such as resin, solvent, and other additives.
  • All Polypropylene construction yields excellent compatibility with most ink chemistries.  Inner PP Core increases filter pressure endurance capability.
  • Specification
  • Performance
  • Ordering Information

Material of Construction

Filter MediumRolled Polypropylene Microfiber
Support LayerPolypropylene
Core/Cage/End CapsPolypropylene
O-RingPlease refer to ordering information



Operating Conditions

Maximum Temperature80°C
Max.Differential Pressure

4.0 bar / 21°C
2.1 bar / 80°C
Steaming Sterilize(Autoclave)null
Inline Steaming Sterilizenull
Hot Water Sterilizenull

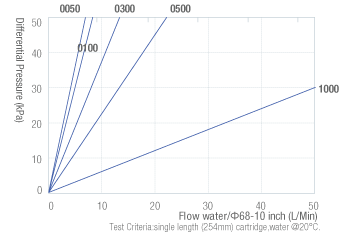

Flow Rate Characteristics




Retention Characteristic

Pore sizeRMF-PR 0.1RMF-PR 0.3RMF-PR 0.5RMF-PR 1.0RMF-PR 3.0

≥0.2μm99.99%97.78%93.87%\\
≥0.5μm100%99.87%99.92%90.45%\
≥1.0μm100%100%100%99.00%78.34%
≥3.0μm100%100%100%99.99%98.90%
≥5.0μm100%100%100%100%99.99%

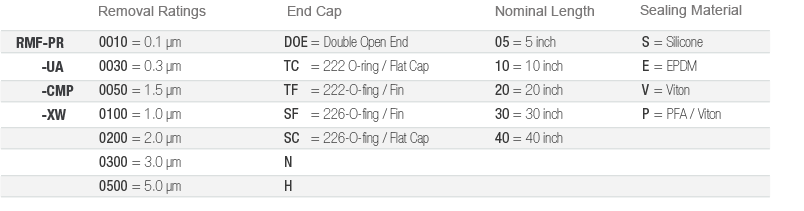

Ordering Information
