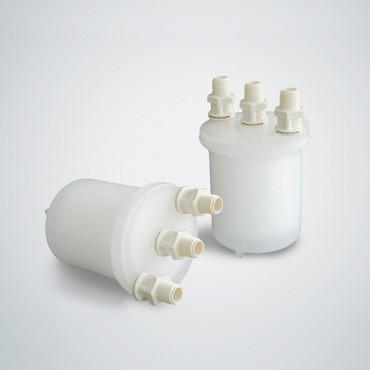

Push to Connect Capsule

Cobetter PRNQ Series Capsule Filters have been widely used in digital ink jet printer applications, such as ceramic printers and textile printers. They are designed with click and lock-connect fittings which easily, are leak free, and utilize quick connect couplings.

  • Specification
  • Performance
  • Drawing
  • Ordering Information

Three Quick Couplings Designs

These filters have three male quick couplings that connect with three female receptors and then attach to the process tool of the assembly. Inlet, outlet, and vent ports are all in the same surface thus saving connection space and reducing the need for additional connectors

Push and Fit Connector

We use original CPC connector. It is simple to use , reduces change out times and is leak-free. This connector make connecting filter capsule easier,reliable and fast with fewer accessories.

UV-resistant Housing Design

UV-resistant housing material-black color PRNQ capsule is special designed for protection from UV light.

Thermal Welding Technology

No adhesive resins and ensure capsule filter excellent pressure endurance.

Non-Fiber Releasing Design

Thermal-bonded fiber polypropylene forms a stable structure ,and ensure no fiber releasing.

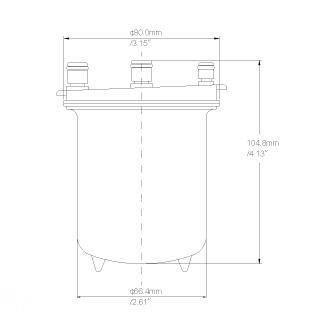

Drawing

Filter Media
Pleated Polypropylene
Cage/Core/Shell/End CapPolypropylene
Max. Allowable Pressure101PSI / 7bar
Max. Allowable Temperature50°C / 120°F
Filtration Area           c㎡

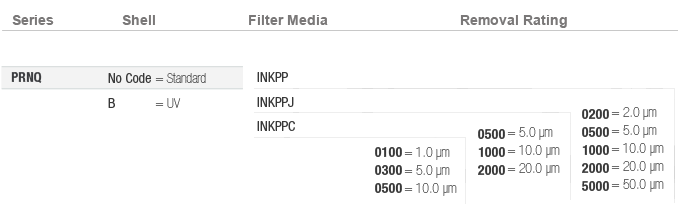

OrderingInformation
