Activated Carbon
CSD-C Lenticular Filter Series

Cobetter CSD-C Lenticular Filter Series adds activated carbon to the wood fiber. It is suitable for industries that need activated carbon absorption. It reduces leakage of activated carbon, and has obvious advantages compared with traditional activated carbon filtration.

  • Specification
  • Performance
  • Ordering Information

Operating Conditions


Maximum Tempearature80℃
Max. Differential Pressure2.4bar
Recommended Flow Rate3-6 L/min/m2
Steaming Sterilize30min@121℃



Biological Safety


Endotoxins < 0.25 EU/ml



CSD-C Series Sheet Activated Carbon Advantages


Powder Activated CarbonCSD-C Series (Sheet Activated Carbon)
Security

Powdered, flammable,

can cause lung disease

Almost no carbon powder pollution; Reduces the risk of fire
Cleanliness

Residual; can pollute

different batches

Clean and sanitary; Little carbon

powder residue

Filtering timeLong timeShort time
Process stepDownstream flow needed to remove carbon powderNo need toremove carbon powder

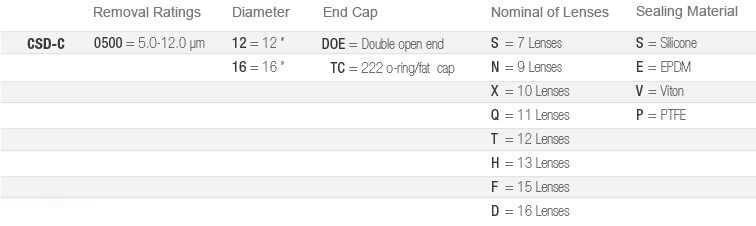

OrderingInformation
