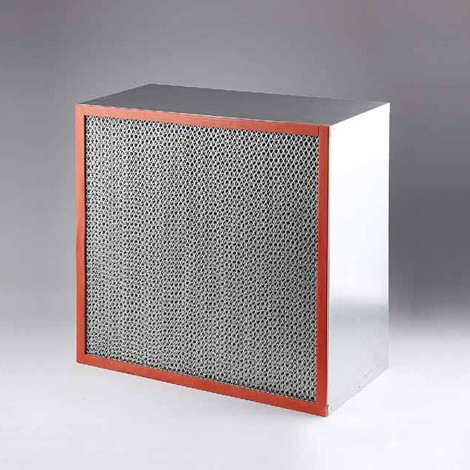

High-temperature Resistance and High-Efficiency Box Filter

Cobetter high-temperature and high-efficiency filters are made of low-resistance ultra-fine glass fiber filter paper with aluminum foil separation and the outer frame can be selected as aluminum alloy or stainless steel, which is sealed with high temperature resisted sealant. They are mainly used for high-temperature air purification equipments and systems, such as high-temperature sterilization tunnels, ultra-clean ovens, etc., owing to the good performance of high temperature resistance (long-term use in the high temperature environment of 250 °C and 350 °C).




  • Specification
  • Performance
  • Ordering Information


Technical Data Sheet

DimensionFiltration LevelRated Air FlowInitial Resistance Under Suggested Air Flow
610 x 610 x 150 mmH11/ H13 / H141000 m³/h< 200 / 235 / 262 Pa600-1000 m³/h
610 x 457 x 150 mmH11/ H13 / H14750 m³/h< 200 / 235 / 262 Pa450-750 m³/h
305 x 610 x 150 mmH11/ H13 / H14500 m³/h< 200 / 235 / 262 Pa300-500 m³/h
915 x 610 x 150 mmH11/ H13 / H141500 m³/h< 200 / 235 / 262 Pa900-1500 m³/h
1220 x 610 x 150 mmH11/ H13 / H142000 m³/h< 200 / 235 / 262 Pa1200-2000 m³/h
630 x 630 x 220 mmH11/ H13 / H141500 m³/h< 200 / 235 / 262 Pa900-1500 m³/h
945 x 630 x 220 mmH11/ H13 / H142200 m³/h< 200 / 235 / 262 Pa1300-2200 m³/h
1260 x 630 x 150 mmH11/ H13 / H142000 m³/h< 200 / 235 / 262 Pa1200-2000 m³/h
1260 x 630 x 220 mmH11/ H13 / H143000 m³/h< 200 / 235 / 262 Pa1800-3000 m³/h
610 x 610 x 292 mmH11/ H13 / H142000 m³/h< 200 / 235 / 262 Pa1200-2000 m³/h
305 x 610 x 292 mmH11/ H13 / H141000 m³/h< 200 / 235 / 262 Pa600-1000 m³/h

H11 99.5~99.94%@0.3μm

H13 99.95~99.994%@0.3μm

H14 99.995~99.9994%@0.3μm

Initial Resistance Test Error ≤15%




Air Flow Correction Graph

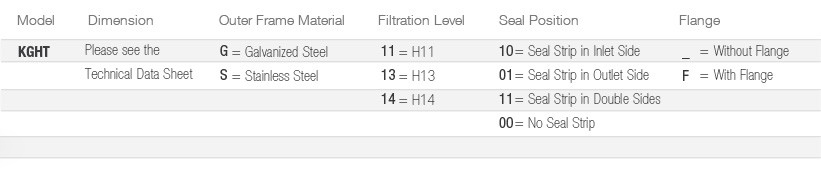

Ordering Information
