All Fluoropolymer Construction Excellent Temperature & Corrosion Resistance

HCPA Filter Housings are composed of high-purity PFA cage providing excellent temperature and corrosion resistance. The ultra-low metal ion extractable in the PFA material guarantees filter purity avoiding contaminants in the solution. HCPA is ideally suited for high temperature and aggressive acids.

  • Specifaction
  • Performance
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message

Characteristics

Cage/Head/Bowl/PlugPFA
Locking RingPVDF
Seal MaterialFFKM
Max. Operating Temperature100°C
Max. Different Pressure0.75MPa/25°C
0.3MPa/100°C

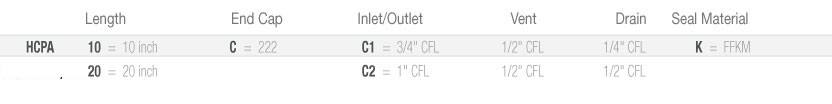

Ordinger Information
