HCP Filter Housing Series
Made of High-Purity Resin

HCP Filter Housings are available in filtration media of PP, PVDF, or PFA. PP Filter Housings are suitable to filter water and regular chemicals and while PVDF Filter Housings are suitable to filter most chemicals. PFA Filter Housings are suitable to filter all chemicals hence it provides excellent temperature resistance and lower extractable; therefore is strongly recommended for the filtration of chemicals in FPD and semiconductor industries.

30 HCP Filter Housings are specially designed for high flow filtration during high generation production line processes. High-purity polypropylene media provides low extractable and wide chemical compatibility. The compact design makes the HCP fit all equipment in the production line.

  • Excellent Chemical Compatibility

    PP, PVDF, and PFA construction provide excellent chemical compatibility and better stability when compared to PVC filter housings to meet various filtration requirements.

  • Various Options for Flow Rates

    Fitted with Φ68 and Φ83 filter cartridges depending on different flow rate requirements.130 HCP is specially designed for high flow rates filtration.

  • Low Liquid Hold-Up

    Upstream and downstream vent design ensures low liquid hold-up.

  • Low Extractable

    No chemicals or colorants are released during the filtration process thus limiting iron extraction.

  • Specifaction
  • Drawing
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message

Operating Conditions

Max. Operating Temperature30°C (MABS housing)
40°C (PP/PVDF housing)
100°C (PFA housing)
Max. Differential PressureMABS housing
0.4 Mpa @20°C (Static)
0.3 MPa @30°C(Static)

PP/PVDF housing
0.6 Mpa@25°C (Static)
0.4 MPa @40°C(Static)
Housing BowlPP/PVDF/MABS/PFA
Housing HeadPP/PVDF/PFA
Locking RingPP
ConnectorPVC/PP/PFA
O-ringEPDM / FFKM
PlugPP / PFA

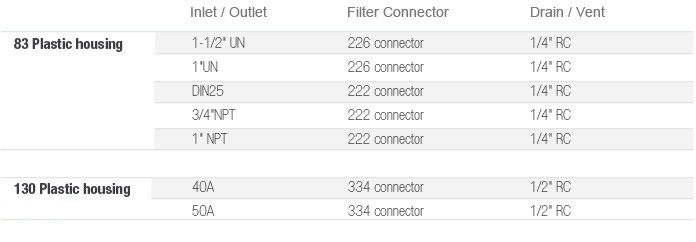

Operating Specifications


Inlet / OutletFilter ConnectorDrain / Vent

83 Plastic

housing

1-1/2" UN
1"UN
DIN25
3/4"NPT
1" NPT
226 connector
226 connector
222 connector
222 connector
222 connector
1/4" RC
130 Plastic housing40A
50A
334 connector
334 connector
1/2" RC


Drawing


Ordering Information
