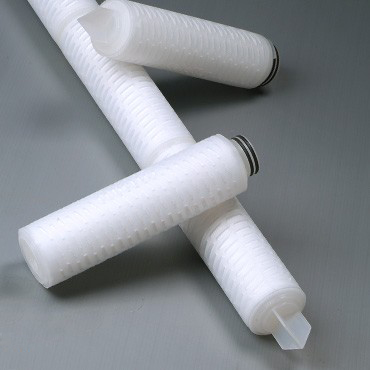

BevPure XL Filter Cartridges
Extended Service Life through Asymmetric PES Membrane · Sterilizing Grade

BevPure® XL  Filter Cartridges have a unique membrane arrangement of single-layer asymmetric hydrophilic PES membrane.  Characteristics include excellent throughput, high dirt holding capacity and durability.  The extremely high flow rates in comparison to other sterilizing grade filter media can significantly reduce filtration costs.


Features and Benefits

  • Highly asymmetric PES membrane provides high dirt holding capacity for longer service life
  • Each filter is individually Integrity Tested prior to factory dispatch
  • Available in ratings from 0.1μm to 1.2μm for precise bacteria and particle removal
  • Complies with Food Contact Regulations: FDA 21CFR177-182 and 1935/2004 EC






  • Specifaction
  • Performance
  • Biological Satety
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message


Materials of Construction

Filter MediumAsymmetric PES Membrane
Cage / SupportPolypropylene
Core / End CapsPolypropylene



Operating Conditions

Max. Temperature80°C
Max. Differential Pressure

4.0 bar / 21°C (forward flow)

2.4 bar / 70°C (forward flow)

Bubble Point

BP: >0.34 MPa (water), 0.22 μm

BP: > 0.22 MPa(water), 0.45 μm

Diffusion Flow

DF: < 30 ml/min/10"@ 0.25Mpa(water), 0.22µm

DF: < 28 ml/min/10"@ 0.16Mpa(water), 0.45 μm

Steam Sterilization
(Saturated Steam)

≥100 cycles

(135°C/30 min @ Max.Differential Pressure of 0.3 bar)

Hot Water Sterilization85°C/30 min @ Max. Differential Pressure of 2 bar
Cleaning Solution2% NaOH Solution @ ≤65°C
Effective Filtration Area0.58m² / 10 inch

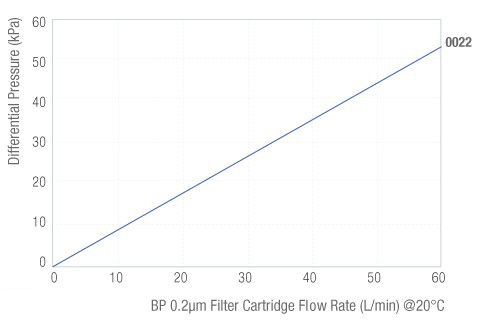

Flow Rate Characteristics


Flow Rate  (LPM)

102030405060

Differential Pressure (kPa)

9.218.527.737.046.255.5



Reliable Microbiological Control

The primary purpose of this membrane filter cartridge in beverage filtration is to effectively remove product spoiling microorganisms

Typical Log Reduction Value(LRV)

B.diminuta

Lactobaccilus Brevis

Sasharomyces Cerevisiae

0.1µm

> 7/cm²

N/AN/A
0.2µm

> 7/cm²

N/AN/A

0.45µm

N/A

> 7/cm²N/A
0.65µmN/A> 4/cm²> 7/cm²
1.2µmN/AN/A> 7/cm²


Ordering Information

    -RRemoval Ratings   End CapNominal LengthSeal Material  -F
BPXL      Blank 0010=0.1μmDOE=Double Open End05= 5"S=Slilicone

[Ф69]
0022=0.22μmHTC=222 O-ring/Flat (PBT Insert)10= 10"E=EPDM



0045=0.45μmHTF=222 O-ring/Fin (PBT Insert)20= 20"V=Viton



0065=0.65μmHSF=226 O-ring/Fin (PBT Insert)30= 30"




0080=0.8μmSSF=226 O-ring/Fin  (SS Insert)40= 40"




0120=1.2μmSSC=226 O-ring/Flat (SS Insert)






STF=222 O-ring/Fin (SS Insert, 3 Tabs)
