H-SCFC / SDFC / SEFC Multi-Round Sanitary Liquid Filter Housing
High Flow Rate Sanitary Grade

H-SCFC Multi-Round Sanitary Filter Housing specially designed for filtration requiring over 12 filter elements.

Flow redesign with flow pattern of side-in and bottom-out reduce cost when compared to bottom-in bottom-out flow pattern. In addition, top-inlet opening eliminates the need to move the housing body while installing the filter elements, thus reducing filter change-out time.

Rocker arm design makes it easier to move the top cap of the filter housing.

The three-part design and detachable plate allow for a complete cleaning when rigorous cleaning requirements are necessary.

Configurations

H-SCFC:

top-opening; fixed plate; side-in and bottom-out flow pattern

H-SDFC:

top-opening and bottom-opening; fixed plate; side-in and bottom-out flow pattern

H-SFFC:

top-opening and bottom-opening; detachable plate ; side-in and bottom-out flow pattern

  • Specification
  • Drawing
  • Ordering Information

Surface Finish

Polish TypeMirror Polish or Internal Electro-polished
Surface OptionInternal Ra: 0.3µm or External Ra: 0.4µm

Operating Conditions

Max. Operating Pressure1.0 Mpa (10 bar)
Max. Operating Temperature130°C(266°F)
Steam SterilizationIn-situ / Autoclave @ 121°C / 30 min

Material of Construction

Housing Body304 or 316L
Vent / Drain304 or 316L
Vent Clamp304
Eyebolt304
Leg304
O-ring/GasketsSilicon, Viton, EPDM

Connection

Body ConnectionFlange (Eyebolt)
nlet / OutletTri-clamp
VentTri-clamp; ID 4mm and for 8mm tube
Pressure Gauge1.5 inch Tri-clamp

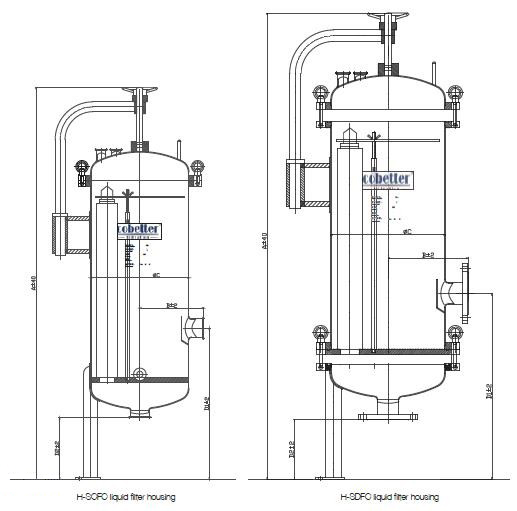

Drawing

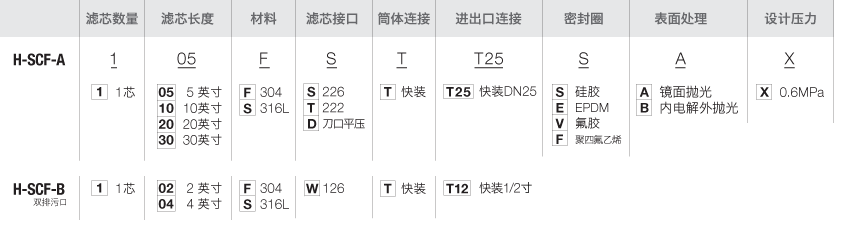

OrderingInformation
