H-SPF In-line Sanitary Filter Housing
Single-Round,Inline-Style, Easy in Cleaning

H-SPF In-line Sanitary Filter Housing designed and manufactured according to sanitary-grade requirements and GMP standards. Widely used in life-science applications.

Due to the compact design of the top-in and bottom-out flow pattern, we recommend to use the filter housings as vent or pipe connector. HSPF II Filter Housing designed for filtration with low volume requirements. Small filter elements with 56mm diameter will fit in this housing.

HSPF II Filter Housing designed for filtration with low volume requirements. Small filter elements with 56mm diameter will fit in this housing.

Design Features

  • Quality surface finishing - Internal Ra: 0.3μm; External Ra: 0.4μm. Sanitary design prevents entrapment or build-up of contaminants.All electro-polishing is also available.
  • Vent & Drain: Threaded sleeve is separated by a stepped thread so that the connection tube will not wave when in draining or venting operation.
  • Enlarged vent and drain - internal diameter connects with an 8mm tube.
  • Quick-release closure clamp allows for quick disassembly – our sectional closure clamps increase pressure endurance by 20% compared to normal clamps.
  • When running at high operating pressure, quick-release closure clamps provide perfecting sealing for PTFE o-rings. Max. Operating Pressure can reach 10 bar.
  • Adjustable nut on the legs allows for filter length to be adjusted.
  • Specification
  • Drawing
  • Ordering Information

Surface Finish

Polish Type

Mirror Polish or

Internal Electro-polished

Surface Option

Internal Ra: 0.3μm or

External Ra: 0.4μm

Operating Conditions

Max. Operating

Pressure

0.6Mpa (6bar)
Max. Operating Temperature135°C(266°F)
Steam SterilizationIn-situ / Autoclave @ 121°C / 30 min

Material of Construction

Housing Body304 or 316L
Vent / Drain304 or 316L
Clamp304
O-ring / GasketsSilicon, Viton, EPDM

Connection

Body ConnectionTri-clamp, Strengthened clamp
Inlet / Outlet1 inch (DN 25) clamp
Vent4mm can connect with 8mm tube
Drain4mm can connect with 8mm tube

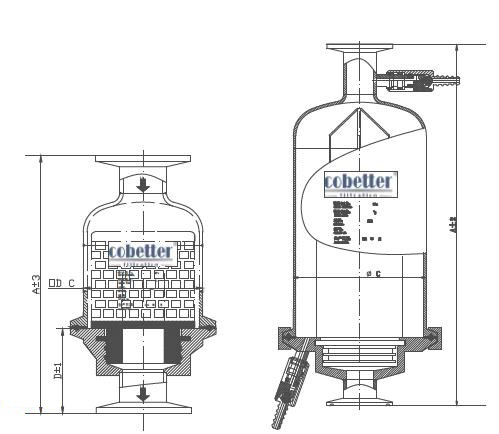

Drawing




1 round

5 inch

1 round

10 inch

1 round

20 inch

 A 297417667
 C102102102

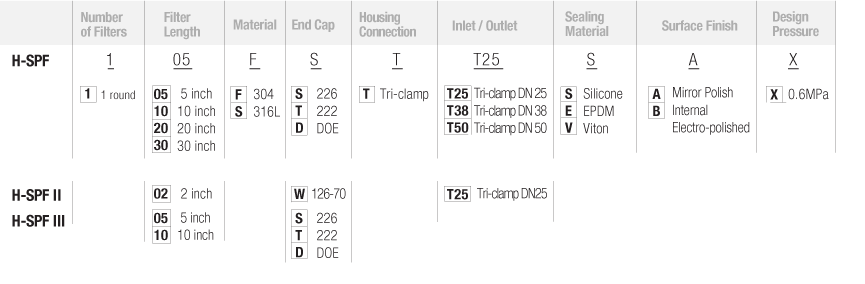

OrderingInformation
